Screenshots of the gDown web console, in light and dark themes, taken on a three-node cluster loaded with a demo graph of eight kinds of node (Person, Company, City, Country, Product, Category, Order, Review), each drawn in its own colour. They follow the page theme.

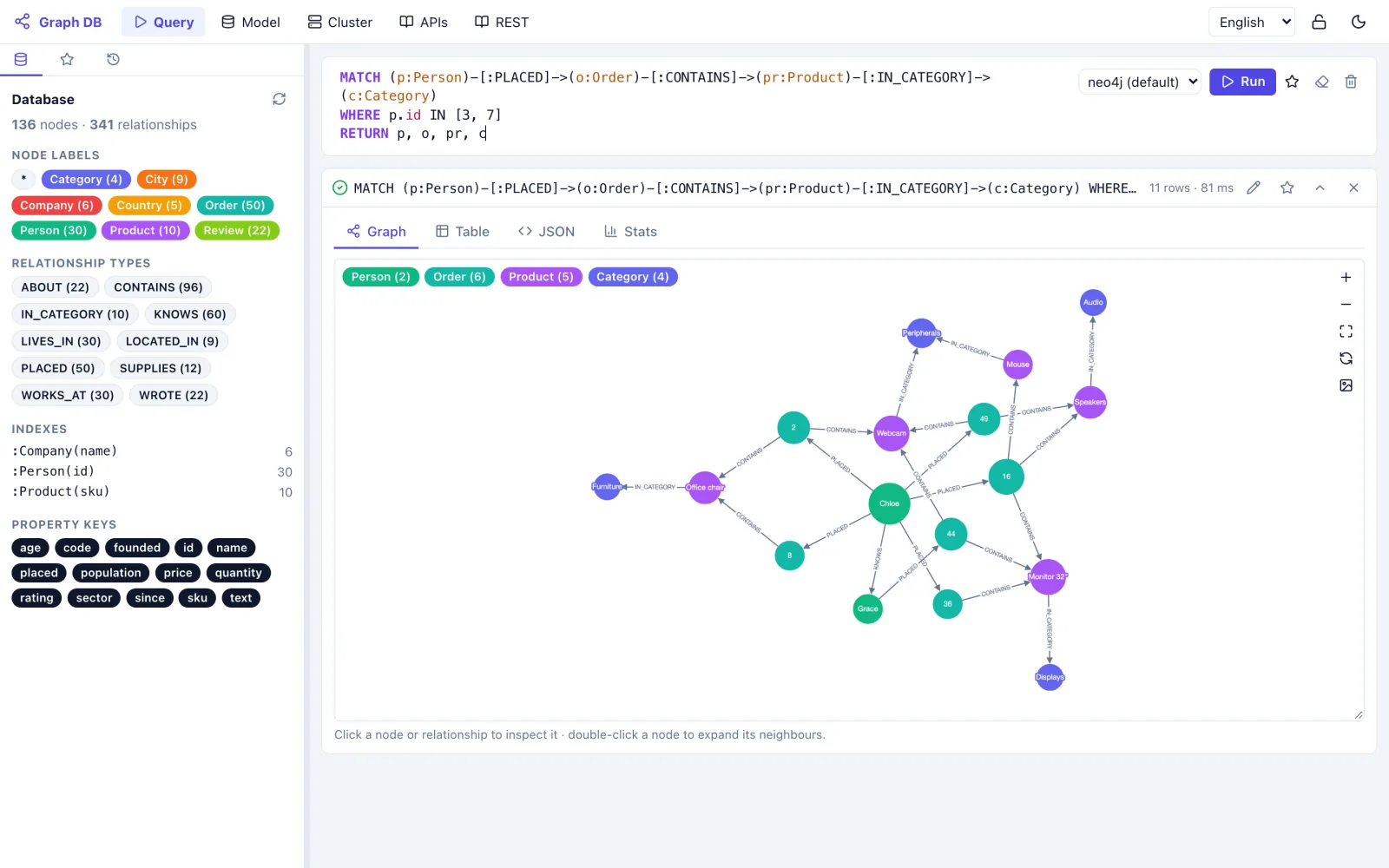

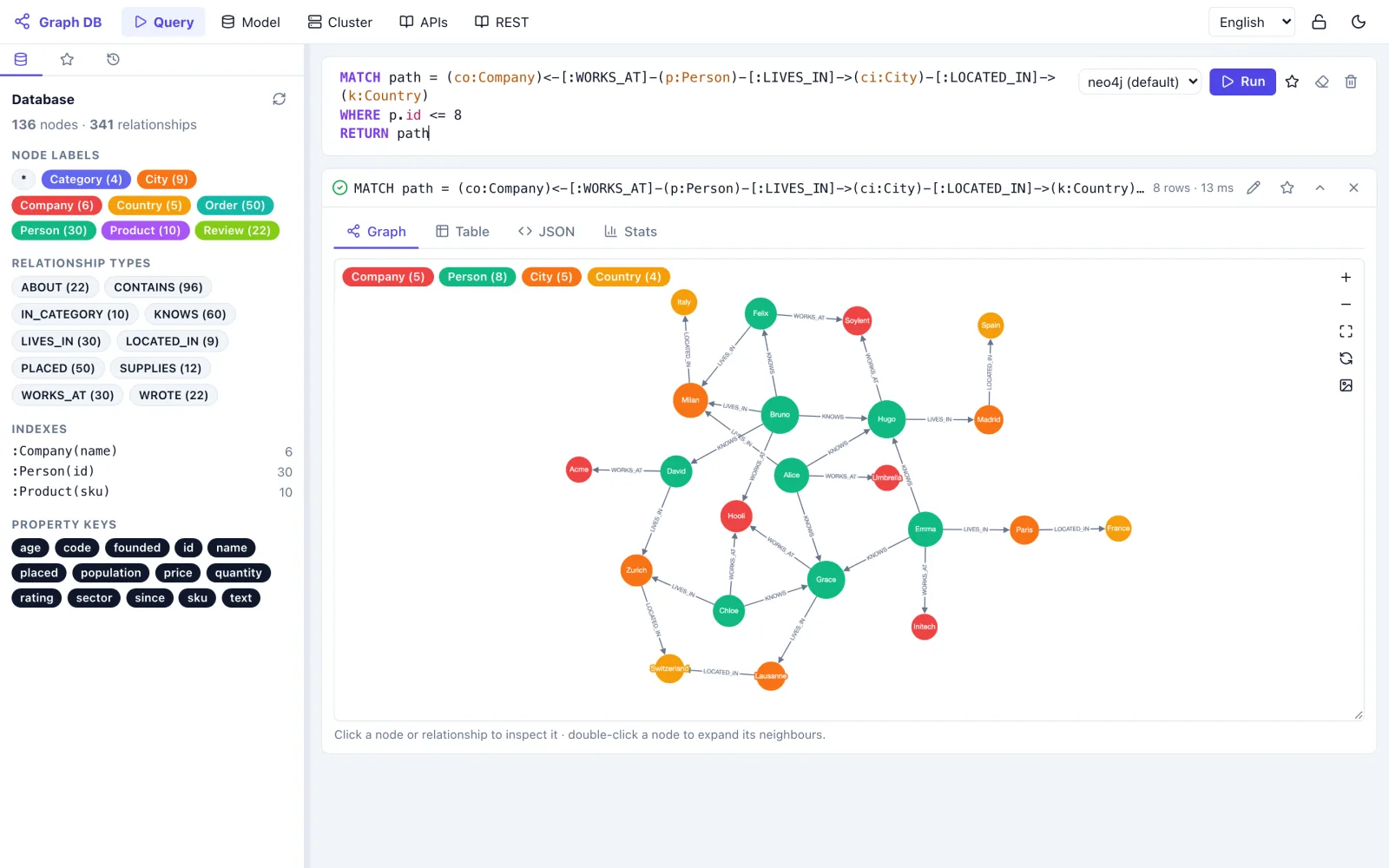

A complex query, drawn as a graph. This path runs from a person through an order and a product to its category; each kind of node has its own colour, with a legend above the graph and the schema in the side bar.Another path, over four kinds of node: companies, people, cities and countries. The same colours are reused everywhere in the console.The data model, read from the data itself. The kinds of node with their counts, the relationships with the multiplicity at both ends, and the properties of the selected kind. It can be exported (Mermaid, Cypher, JSON Schema, GraphQL, JSON).The same results as a table. An aggregation (revenue and number of orders per category) in a sortable, paged table; the Graph, Table, JSON and Stats views are one click apart.The query plan. With PROFILE, each operator shows its rows, its database hits and its time, to see where a query spends its effort.From a query to an API. Saved queries become a REST contract (here shop), with its Swagger UI generated, ready to try.A three-node cluster. The three members, which one leads, the Raft term and the last applied index, with the address of each node.
The console itself exists in five languages (English, French, Spanish, Italian, German); these screenshots are in English. Demo data on a throw-away cluster.
